 Coil Line, NC Feeder and Piler
Coil Line

 Zigzag NC Feeder

 1200 Width Programmable  NC Coil Line with Piler

 12t Coil Line with 16t Sheet Supplier


 Uncoiler Leveler

Zigzag NC Feeder
              NC Feeder     Option: Zigzag Function
 NC Feeder  Features:

  1. Operations:   You can operate as both NC Feeder and
              zigzag feeder.
    2. Zigzag Driver: You can choose servo or pneumatic cylinder.
   3. Zigzag Mode: You can choose 2 and 3 rows in case of
              servo driven zigzag.
    4. Application:  Round blanking for transfer stamping presses.


Main Specifications
 Model  DFA-13zz  DFA-20zz  DFA-30zz  DFA-40zz
 1. Width (mm)  20〜130  20〜200  20〜300  20〜400
 2. Thickness (mm)  Max. 2.3  Max. 3.2  Max. 3.2  Max. 3.2
 3. Feed pitch (mm)  999.9  999.9  999.9  999.9
 4. Accuracy (mm)  0.05  0.05  0.05  0.05
 5. Feeding Capacity    80x3.2  80x3.2  50x3.2
   130x2.3  200x2.3  300x2.0  50x3.2
 6. Zigzag driver    Servomotor/Pneumatic Cylinder
 7. Zigzag stroke (mm)    Max. 180
 8. Power supply     200/220V, 50/60Hz, 3 Phases


1200 Width Programmable  NC Coil Line with Piler
 Uncoiler and leveler for 1200 width and 5ton to produce office equippments.  Piler for 1200 width and 5ton to produce office equippments.

Main Specifications:
1. Material   SPCC
 2.Tensile Strength  294N/mm2
 3. Width (mm)  400〜1250
 4. Thickness (mm)  0.6〜1.2
 5. Leveling Capacity  1.2t → 1250w
 6. Feeding Length  400〜2500
 7. Feeding Accuracy (mm)  2000p → 0.2
 8. Productivity  Min. 1000L x 3000Pieces
 9. Coil Weight (kgf)  5000
 10. Inner Diameter(mm)  508
 11. Outer Diameter(mm)  520〜1200
 12. Line Speed (m/min)  Max. 25

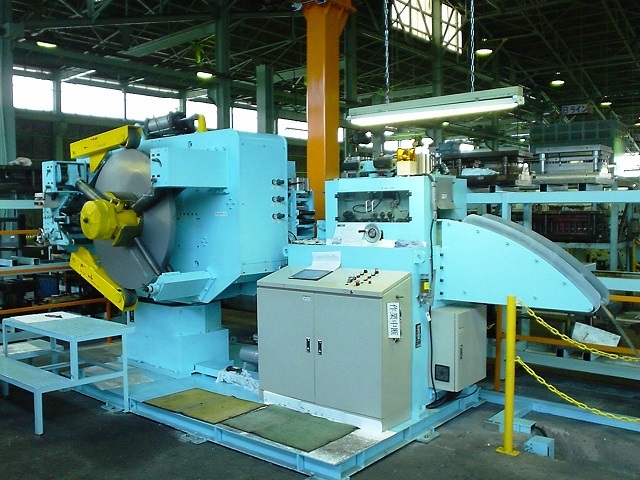

12t Coil Line with 16t Sheet Supplier

Coil Line
 Leveler

 Main Specification:

 A. Coil Line
  1. Material SAPH440
  2. Tensile Strength  588N/mm2
 3. Width (mm)  100 〜 400
 4. Thickness (mm)  3.0 〜 12.0
 5. Straightening Capacity  12.0t → 160w
   8.0t → 400w
 6. Coil Weight (kgf)  5000
 7. Inner Diameter (mm)  508/610
 8. Outer Diameter (mm)  1000 〜 1700
 9. Line Speed (m/min)  8.0
 B. Sheet Supplier
 1. Sheet Weight (kgf)  130/Piece
 2. Thickness (mm)  3.0 〜 15.0
 3. Width (mm)  100 〜 350
 4. Sheet Length (mm)  3000 〜 4200
 5. Stack Weight(kgf)  3000 x 2
 6. No. of Stack  2
